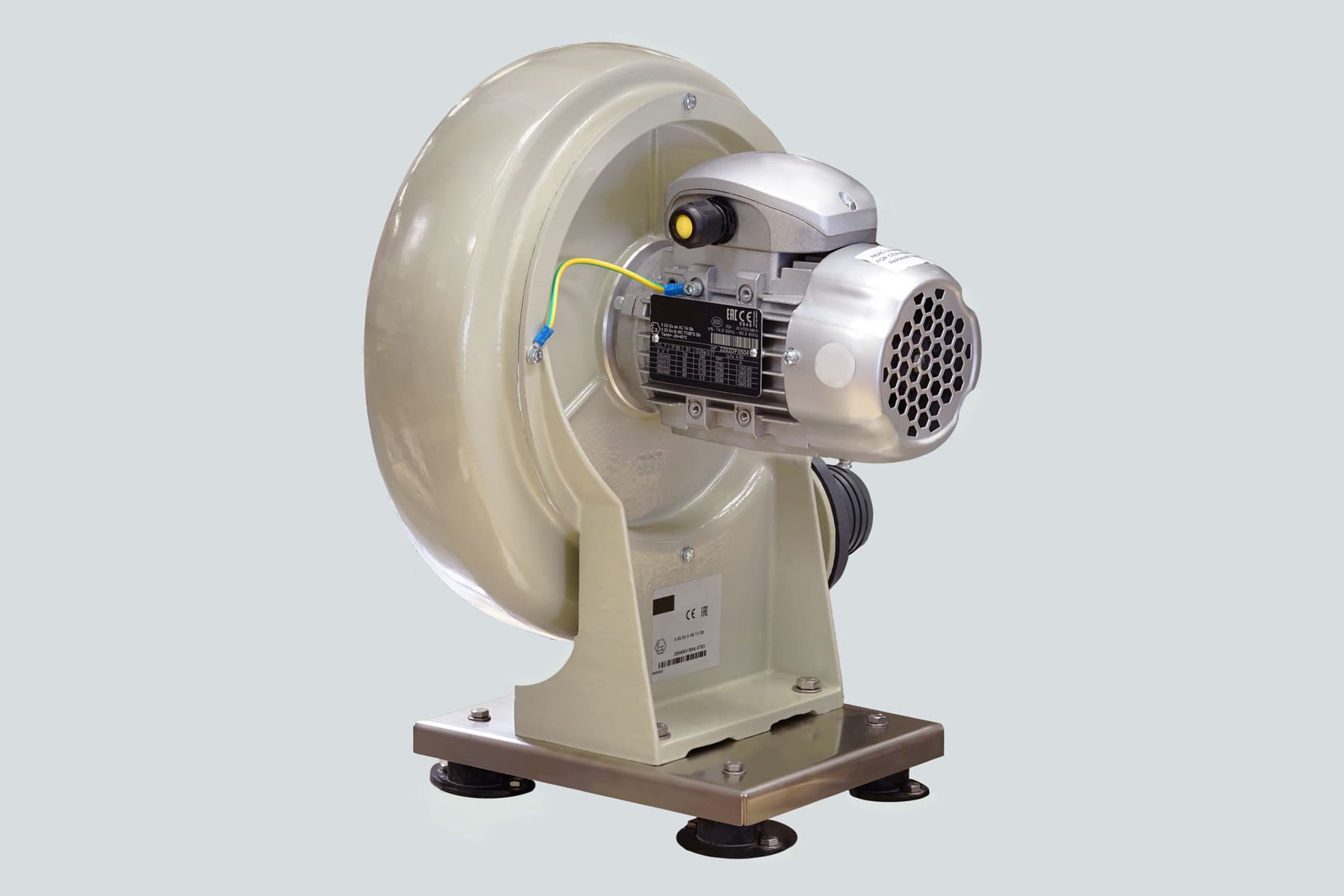

ATEX Autonomous Extraction Fan
Overview
ATEX Autonomous Extraction Fan
Description
For glove boxes operating under air, Gsafe in particular, it is possible to provide an independent extraction fan. This extractor provides ventilation through HEPA filters and depression of the enclosure. Designed to operate continuously 24/7, the equipment is highly reliable and will contribute to safe handling.
It ensures the autonomous operation of a containment enclosure when the extraction flow rate and the depression of the general extraction network of the room are not sufficient. It is necessary to connect the fan outlet to an extraction point in the room. This fan is particularly suitable for ATEX atmospheres in the chemical sector in particular.
Technical specifications - Information
|
Motor power: 0.25 kW – 1.1A
|
|
Voltage: 230V
|
|
Ex II 2G Ex eb IIC T4 Gb
|
|
Pressure difference: 1200 Pa for a volume of approximately 200m3/h
|
|
I/O connections: fluted end Ø63 mm
|
|
Comes supplied with an anti-vibration stainless steel plate
|
