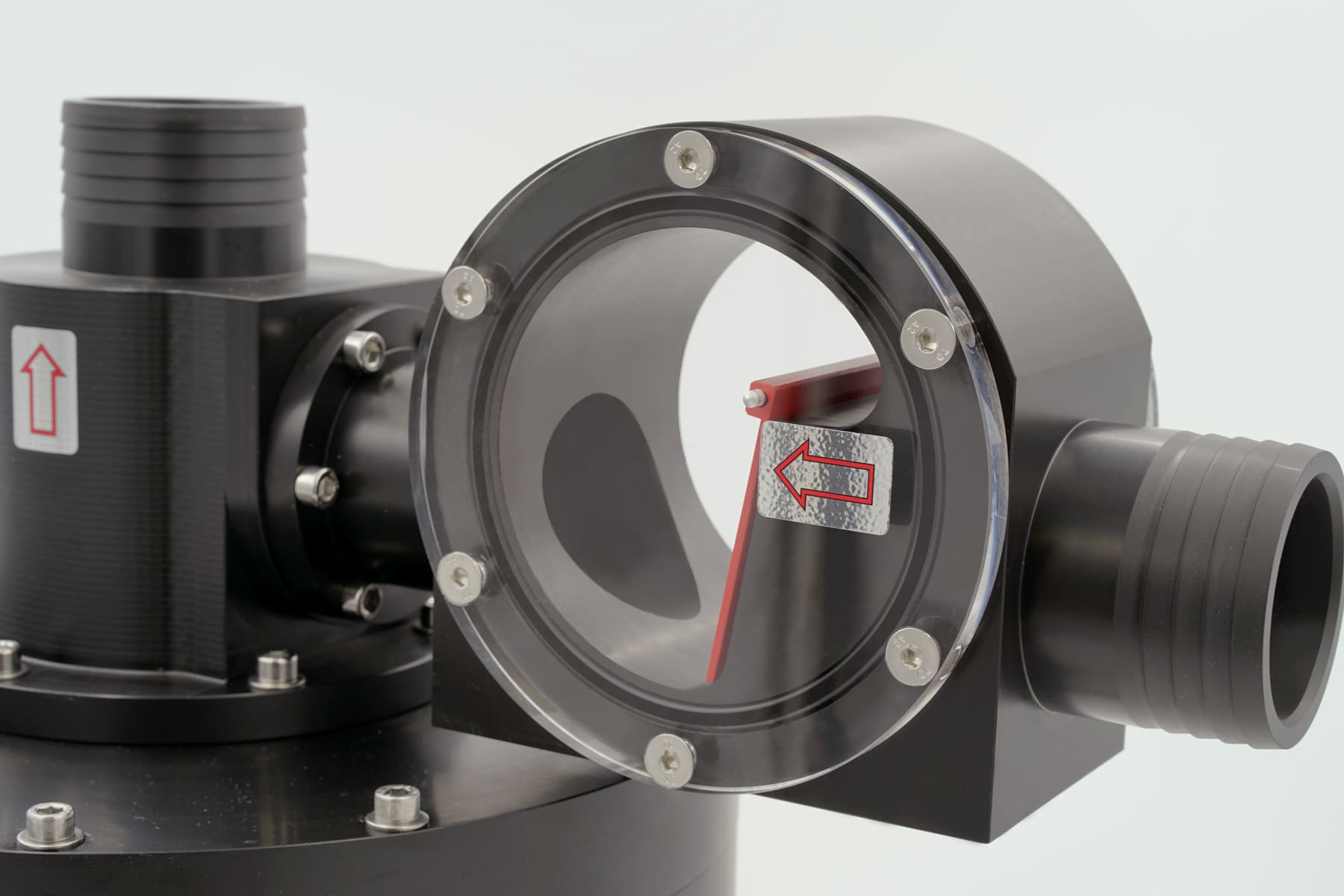

VPR63 Regulating Valve for Glove Box

Jacomex Solutions

Gsafe

Description

For hazardous atmospheres, control valves (designed and manufactured by Jacomex) provide reliable, efficient and long-lasting protection for operators and the environment. They were initially developed to ensure the safety of installations in a nuclear environment and have since been used for other applications where the protection of operators is a priority.

These models are designed to operate exclusively in negative pressure glove boxes. In addition, they reduce internal air turbulence and the flow indicator indicates the level of clogging of the HEPA filters.

Technical data

Technical specifications - Information

Technical specifications of the regulating valve:

Material: Polymer

Connected in series on the main extraction circuit of the glove box

Mechanical operation, with membrane, without electrical connection

Ultra-fast response time due to direct reference to cabinet pressure

Connections: fluted end Ø63 mm (flange on request)

Dry contacts for triggering alarms (pressure fault)

Nominal flow 10m3/h (5-15m3/h)

Security flow 50m3/h

Minimum required pressure of the extraction network: -1200 Pa

Main functions

Automatic regulation of the (de)pressure of the glove box.
Instant readjustment of the (de)pressure during movement/handling (gloves) and for any other pressure variation caused by an internal process.
Automatic compensation for progressive clogging of HEPA filters.
Safety flow (speed 0.5-1 m/s) in the event of an accidental breach of containment.
