Mechanical guard valve
Category
Ventilation & Regulation
Back to All Equipment
Overview

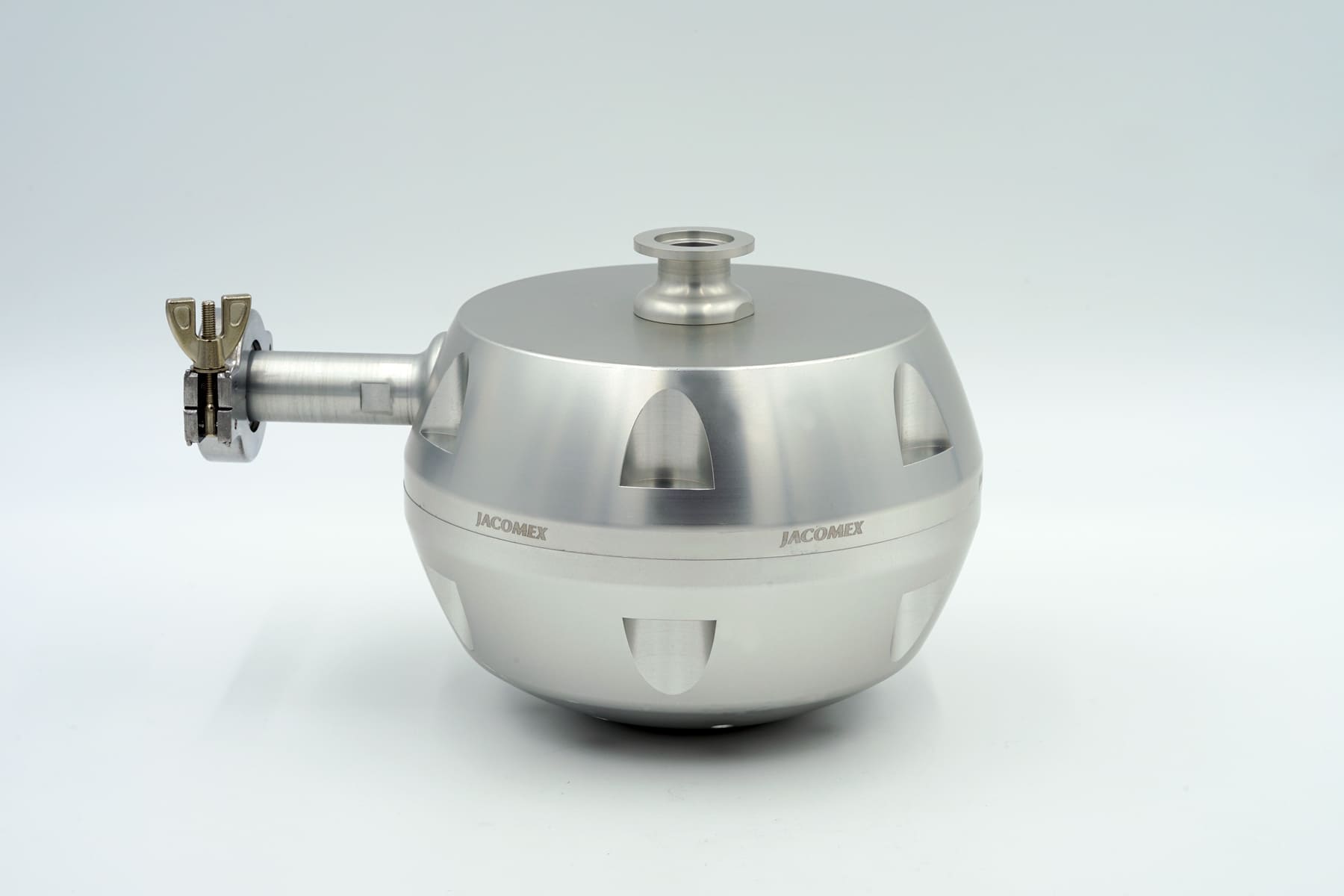

Mechanical guard valve
Description
For glove boxes operating mainly in a gaseous atmosphere and purified atmosphere, the use of a hydraulic guard has interesting technical aspects. Its characteristics are remarkable, making it possible to combine a very low opening pressure with a high flow rate.
Hydraulic guards offer many advantages, such as:
- Rapid evacuation of excess gases in an enclosure.
- No fluid or liquid body is used: 100% compatible with clean rooms, semiconductors and all electronic sectors.
- Maintaining the enclosure at the pre-set working pressure.
- Increased comfort of handling with gloves.
- Eliminates the need for a vacuum pump in the pressure regulation process.
- Safety equipment allows users to mechanically control an accidental rise in pressure.
Technical data
Technical specifications - Information
|
Section for mounting on enclosure wall: ISO KF DN25 connection
|
|
Can be equipped with a HEPA filter inside the enclosure
|
|
Collectable exhaust: ISO KF DN25 connection
|
|
Adjustable opening pressure thanks to an adjustment screw
|
|
Maximum flow 5m3/h
|
